V-LINE

SPECIFICATIONS

• -------- GENERAL DATA --------
• Signal Type

  Analog
• Copper Type

  OFC Oxygen Free Copper
• Application Type

  Microphone Cable, Signal Cable
• Application Area

  Touring/Installation
• Color

  Black
• -------- TECHNICAL DATA --------
• Conductor Core

  4
• Conductor mm2

  0.33(4 core), 0.64(2 core)
• Conductor AWG

  22

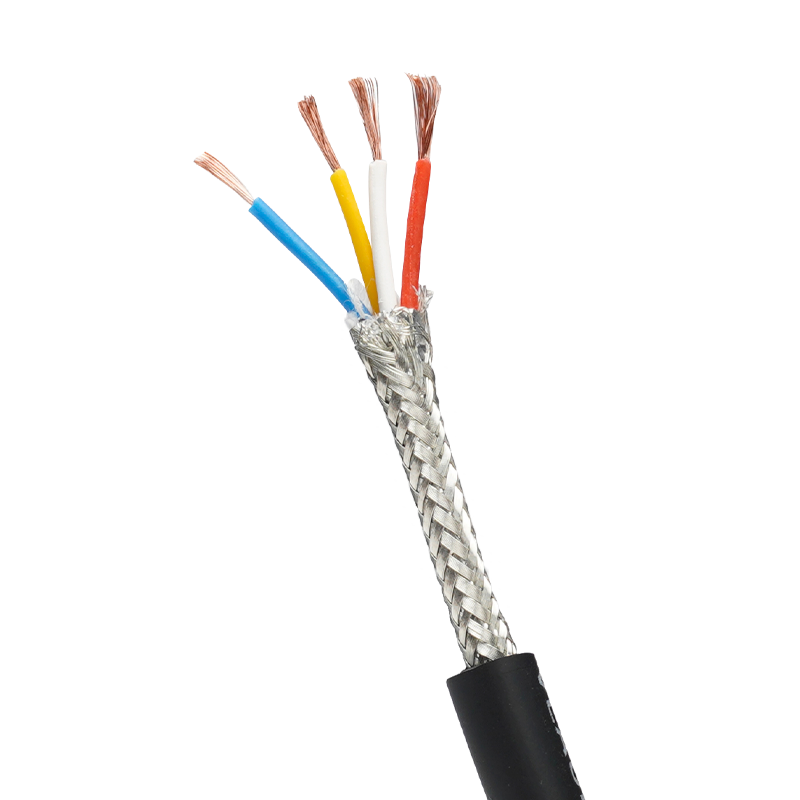

• Shielding

  Braid Shield + Aluminum Foil
• Insulation Material

  LDPE
• Insulation Color

  Red/White/Yellow/Blue
• Insulation Ø mm

  1.3mm
• Jacket Material

  Environmental PVC
• Jacket Ø mm

  6.2mm
• Filler Material

  Cotton Filler
• -------- ELECTRICAL DATA --------
• Capacitance Conductor/Conductor Per Km

  <52PF
• Capacitance Conductor/Shield. Per Km

  <156PF
• Conductor Resistance Per 1 km

  57.3Ω
