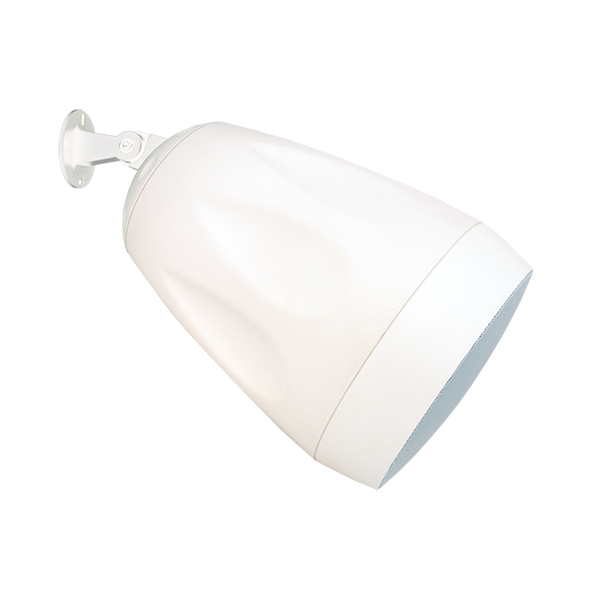

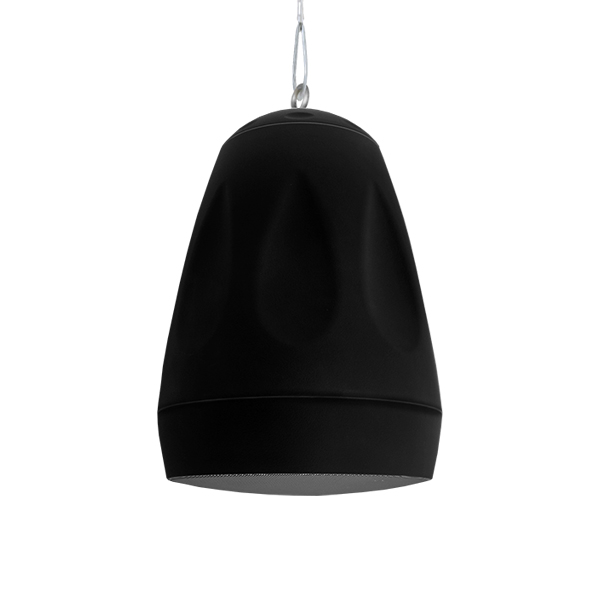

V-FIXED

SPECIFICATIONS

• -------- SPECIFICATIONS --------
• Product Type

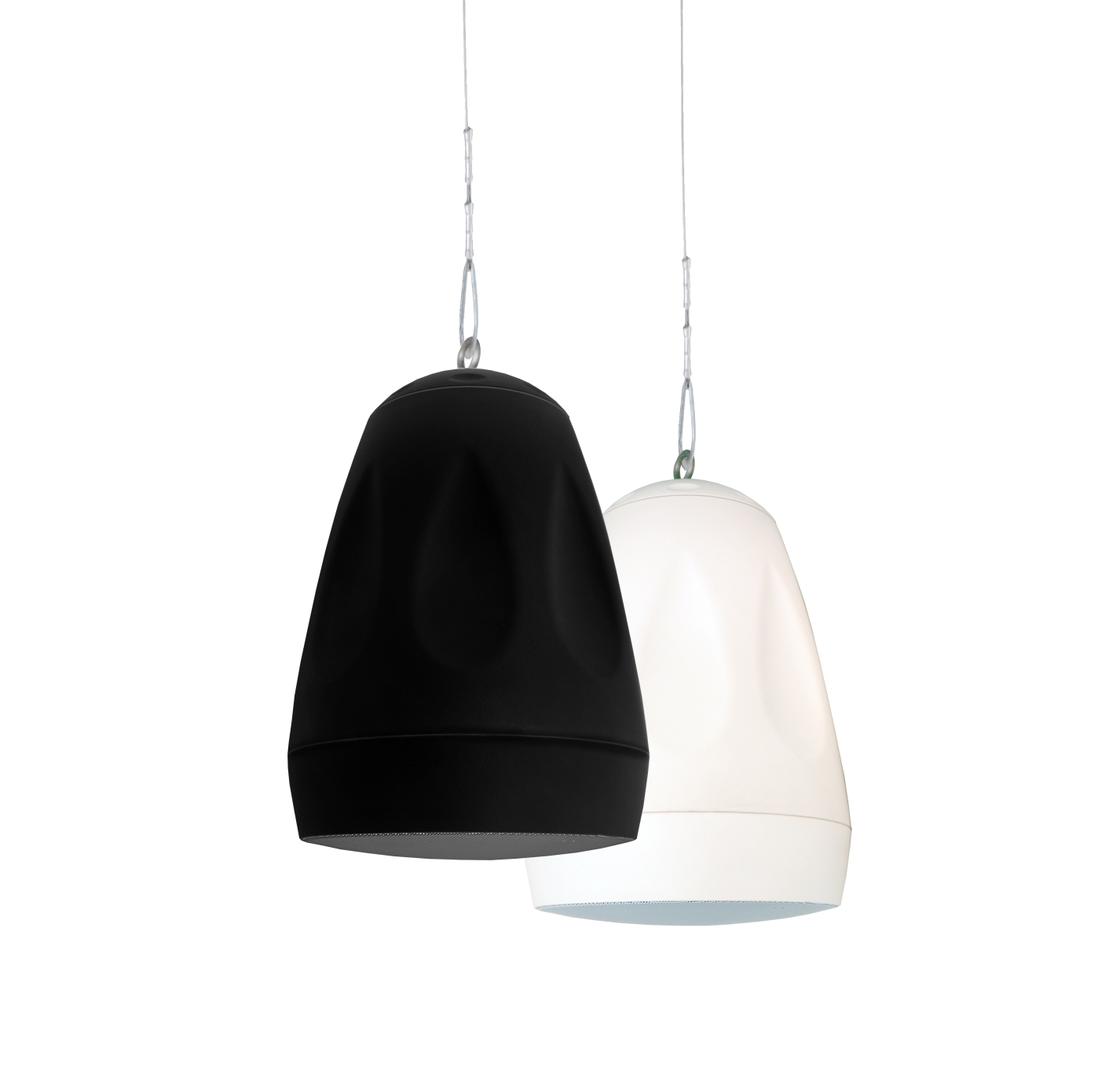

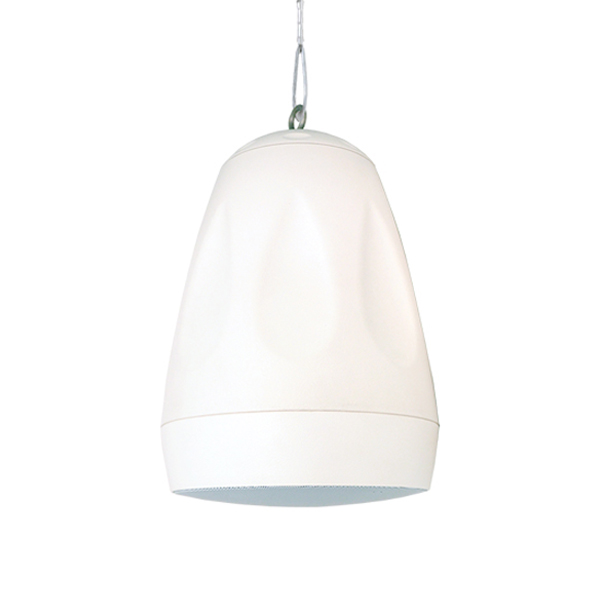

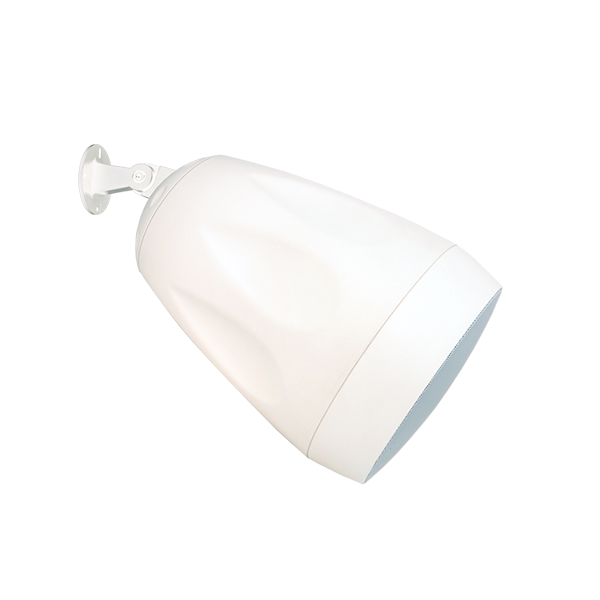

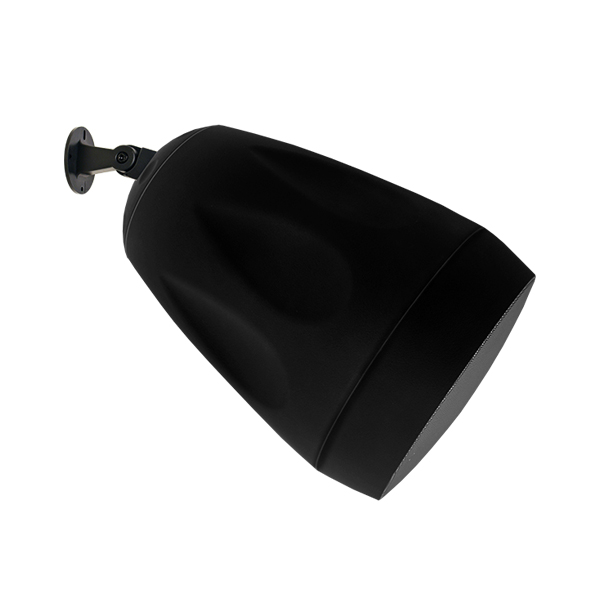

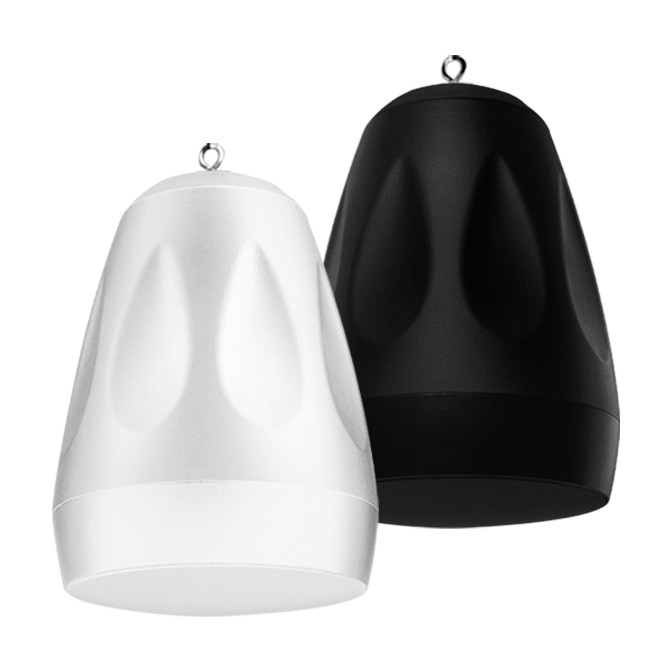

  Full-Range Pendant Speaker(8Ω/100V)
• Frequency Response (-6dB)

  90Hz - 20kHz
• -------- TRANSDUCER --------
• Nominal Coverage

  90° Conical
• RMS Power

  40W
• Program Power

  80W(8Ω)
• Nominal Impedance

  8Ω
• Maximum SPL Calculated

  85dB

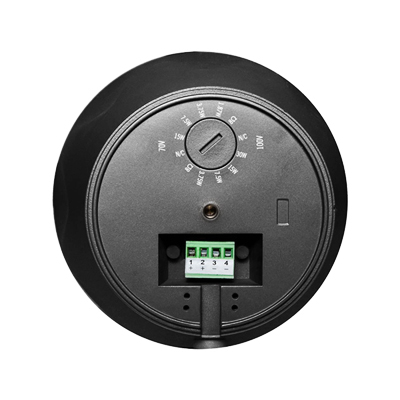

• Transformer Taps 100V

  5W, 10W, 20W, 40W
• Transformer Taps 70V

  2.5W, 5W, 10W, 20W

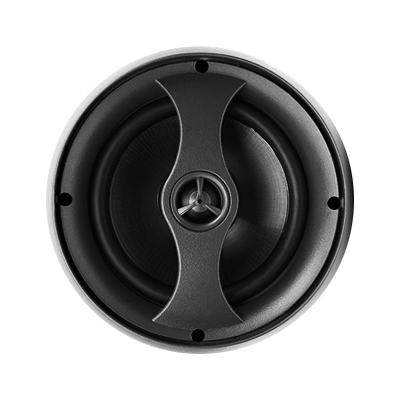

• LF Driver

  6.5” Polypropylene Cone Woofer
• HF Driver

  1” Silk Dome Tweeter
• -------- INPUT/OUTPUT SECTION --------
• Input connector

  Quick release connector
• -------- PHYSICAL SPECIFICATIONS --------
• Cabinet/Case material

  Acrylonitrile butadiene styrene
• IP Rating

  IP66(Only with rear cover in place)
• -------- SIZE --------
• Height

  280mm
• Width

  208mm
• Depth

  208mm
• Weight

  3kg
