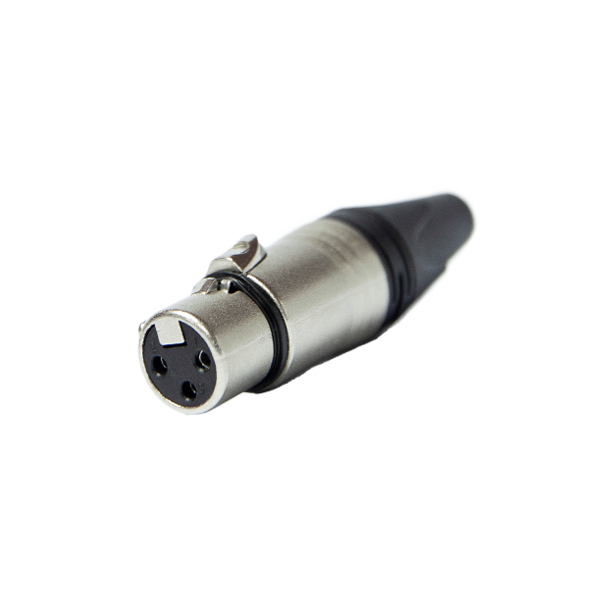

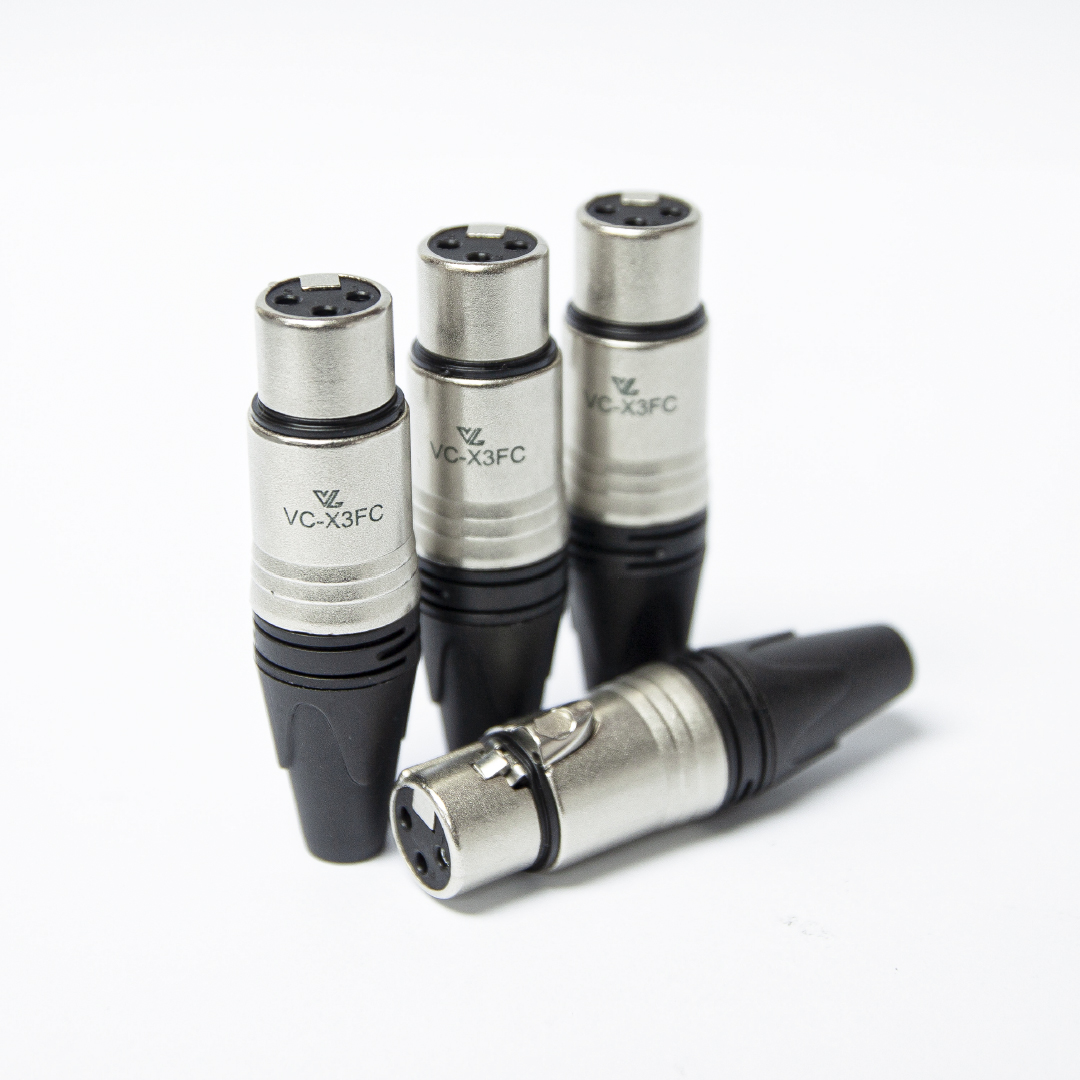

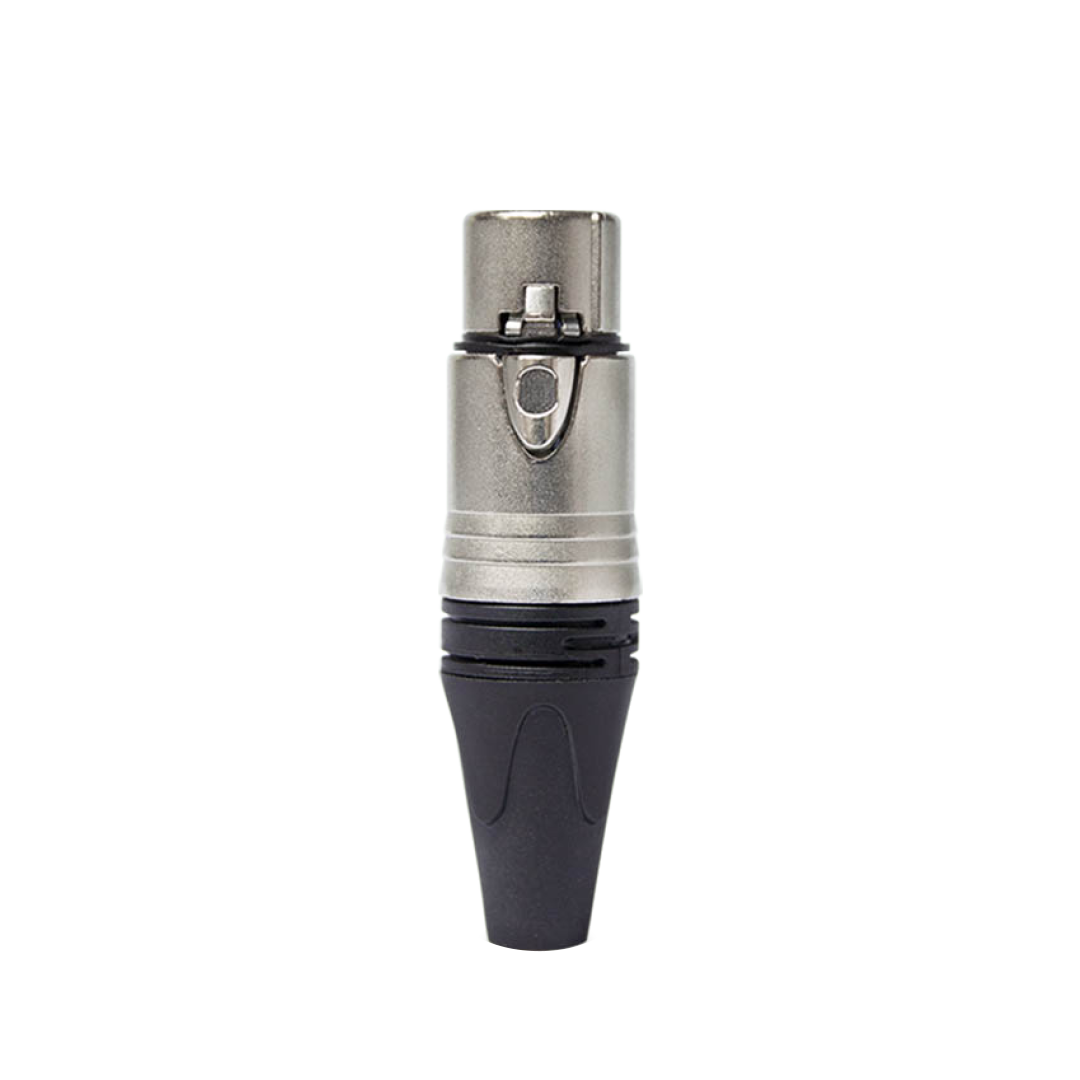

V-CONNECT

SPECIFICATIONS

• -------- ELECTRICAL --------
• Contacts resistance

  ≤3mΩ
• Rated current per contact

  16A
• Rated voltage

  <50VAC
• Capacitance between contacts

  ≤4 pF
• Insulation resistance

  > 10GΩ(initial)
• > 1GΩ(after damp heat test)
• Dielectric strength

  1.5kVDC
• -------- MECHANICAL --------
• Lifetime

  >800 mating cycles
• Insertion force/Withdrawal force

  ≤20N
• Applicable cable OD（mm）

  3.5-8.0mm
• Wiresize

  1.5mm2-2.0mm2
• Cable retention

  ≥ 220N
• Locking device

  Latch lock

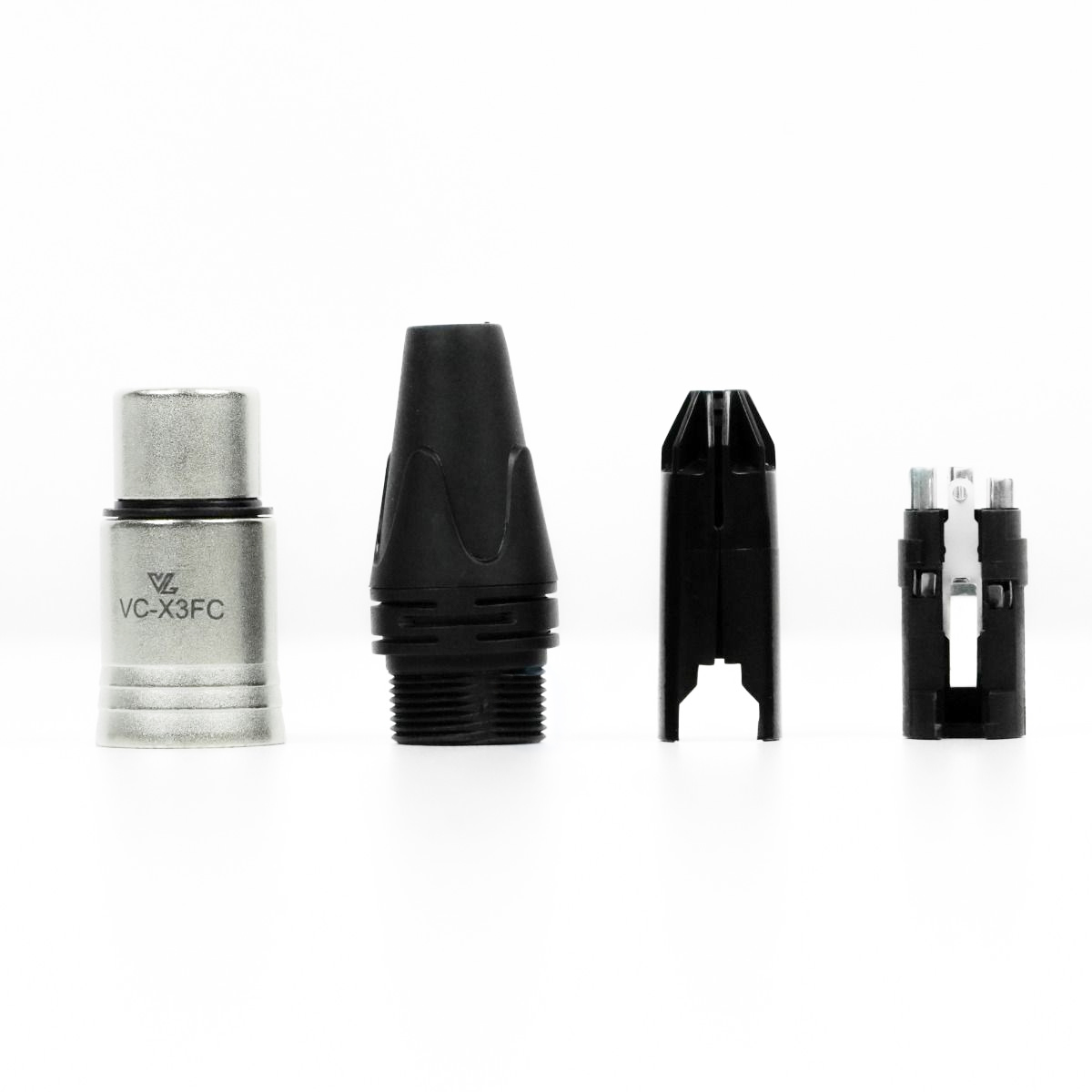

• -------- MATERIAL --------
• Shell(Housing)

  Zinc diecast(ZnAl4Cu1)
• Shell plating

  Nickel
• Contact

  Phosphor copper
• Contact Plating

  2μm silver
• Latch/Locking element

  Zinc alloy
• Strain relief

  POM
• Bushing

  PA/PVC
• -------- ENVIRONMENTAL --------
• Temperature range

  -30 °C to +80 °C
• Solderability

  IEC 69-2-20
