V-CONNECT

SPECIFICATIONS

• -------- ELECTRICAL --------
• Contacts quantity

  4
• Rated current per contact

  30A
• Rated voltage

  250VAC
• Contact resistance

  < 2mΩ
• Insulation resistance

  > 1 GΩ
• Dielectric strength

  4,000V peak
• -------- MECHANICAL --------
• Lifetime

  > 5000 mating cycles
• Applicable cable OD(mm）

  Four core 9-16mm
• Wiresize

  4 mm² (AWG 12)
• Cable retention

  ≥ 220N
• -------- MATERIAL --------
• Body material(Housing)

  PA6 30%
• Inside material

  PA6 30%
• Contact

  Brass copper

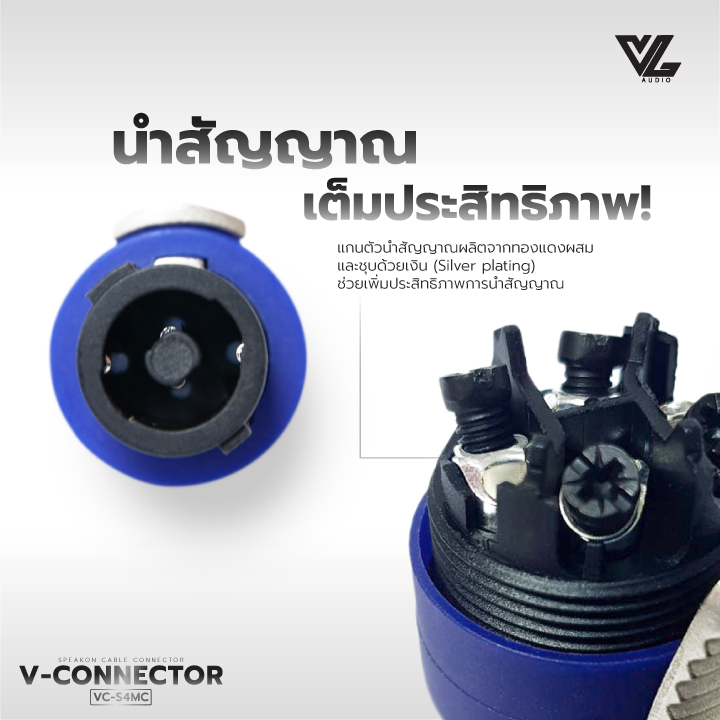

• Contact Plating

  2μm silver
• Latch/Locking element

  Zinc alloy
• Strain relief

  POM
• Bushing

  PA6 15%
• -------- ENVIRONMENTAL --------
• Temperature range

  30 °C to +80 °C
• Standard compliance

  RoHS
