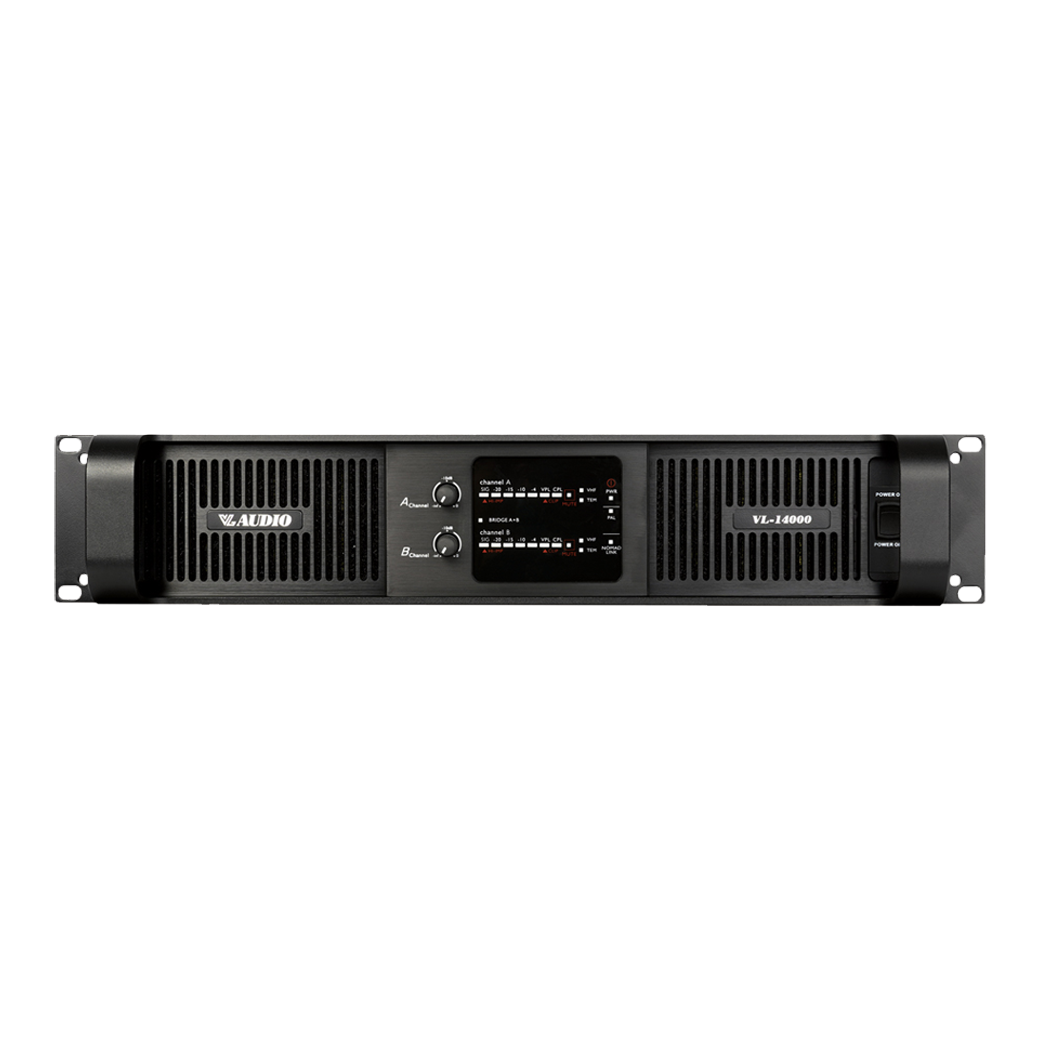

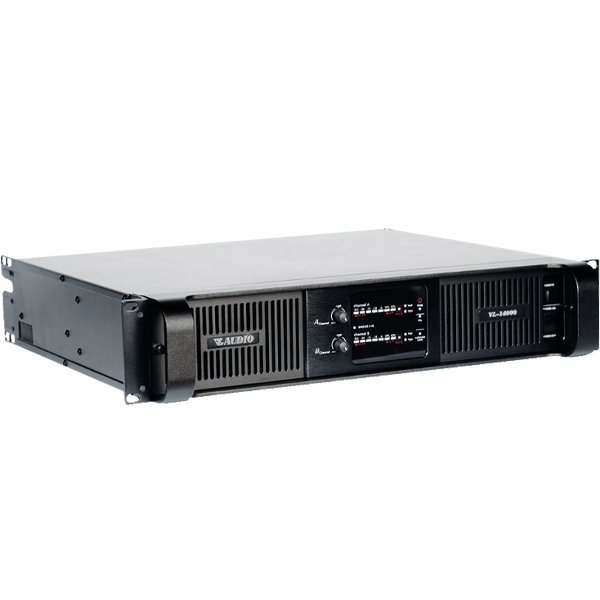

V-AMP

SPECIFICATIONS

• -------- SPECIFICATIONS --------
• Number of Amplifier Channels

  2
• Peak Total Output

  14,000W
• Peak Output Voltage Per Channels

  195V
• Max Output Current Per Channels

  36A
• Max Output Power Per Channels

  4Ω 4,400W / 8Ω 2,350W
• Max Output Power Bridged

  4Ω 14,000W / 8Ω 8,800W
• -------- PERFORMANCE --------
• THD+N(1kHz) 1/4 Full Power @8Ω

  <0.1%
• Slew Rate

  30V/μs
• Signal to Noise Ratio

  >95dB
• Input Impedance

  20kΩ Balance / 10kΩ Unbalance
• -------- GAIN, SENSITIVITY AND LIMITERS --------
• VPL, Selectable Per Channel

  195, 170, 140, 116, 100, 80, 66, 54V
• VPL, When Bridged

  390, 340, 280, 232, 200, 160, 132, 108V
• Voltage Peak Limiter Mode(Per Channel)

  Hard / Soft
• Amplifier Gain Selectable(All Channels)

  23, 26, 29, 32, 35, 38, 41, 44dB
• -------- CONNECTORS AND BUTTONS --------
• Input Connectors

  3-Pin XLR
• Output Connectors

  4-Pin SpeakOn / Binding Posts 2-Pole
• Output Bridge Mode

  A+B(CH A is Input Source)
• Intelligent Fans

  Depending on Presence of Output Signal
• Cooling

  Dual Fan, Front to Rear Airflow
• -------- POWER --------
• Operating Voltage, 230V

  130-265V
• Minimum Power-Up Voltage, 230V

  171V
• Power Average Limiter(PAL)

  Yes
• Soft-start / Inrush Current Draw

  Yes / Max. 5A
• Mains Connector

  230V CE: 16A
• -------- SIZE --------
• Height

  88mm(2U)
• Width

  483mm
• Depth

  410mm
• Weight

  12kg
