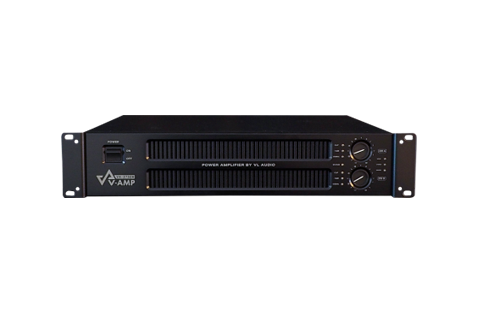

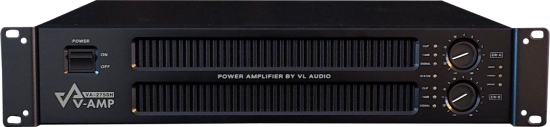

V-AMP

SPECIFICATIONS

• -------- SPECIFICATIONS --------
• Number of Amplifier Channels

  2
• Peak Total Output

  2,750W
• Peak Output Voltage Per Channels

  90Vrms
• Max Output Power Per Channels

  4Ω 1,400W / 8Ω 800W
• Max Output Power Bridged

  8Ω 2,750W
• -------- PERFORMANCE --------
• Frequency Response

  20Hz - 20kHz
• THD+N(1kHz, @4Ω, -10dB)

  <0.03%
• Signal to Noise Ratio

  >105dB
• Damping Factor(10-400Hz,8Ω)

  >300
• -------- GAIN, SENSITIVITY --------
• Sensitivity Selectable All Channel

  0.775V, 1.4V, 32dB
• -------- CONNECTORS AND BUTTONS --------

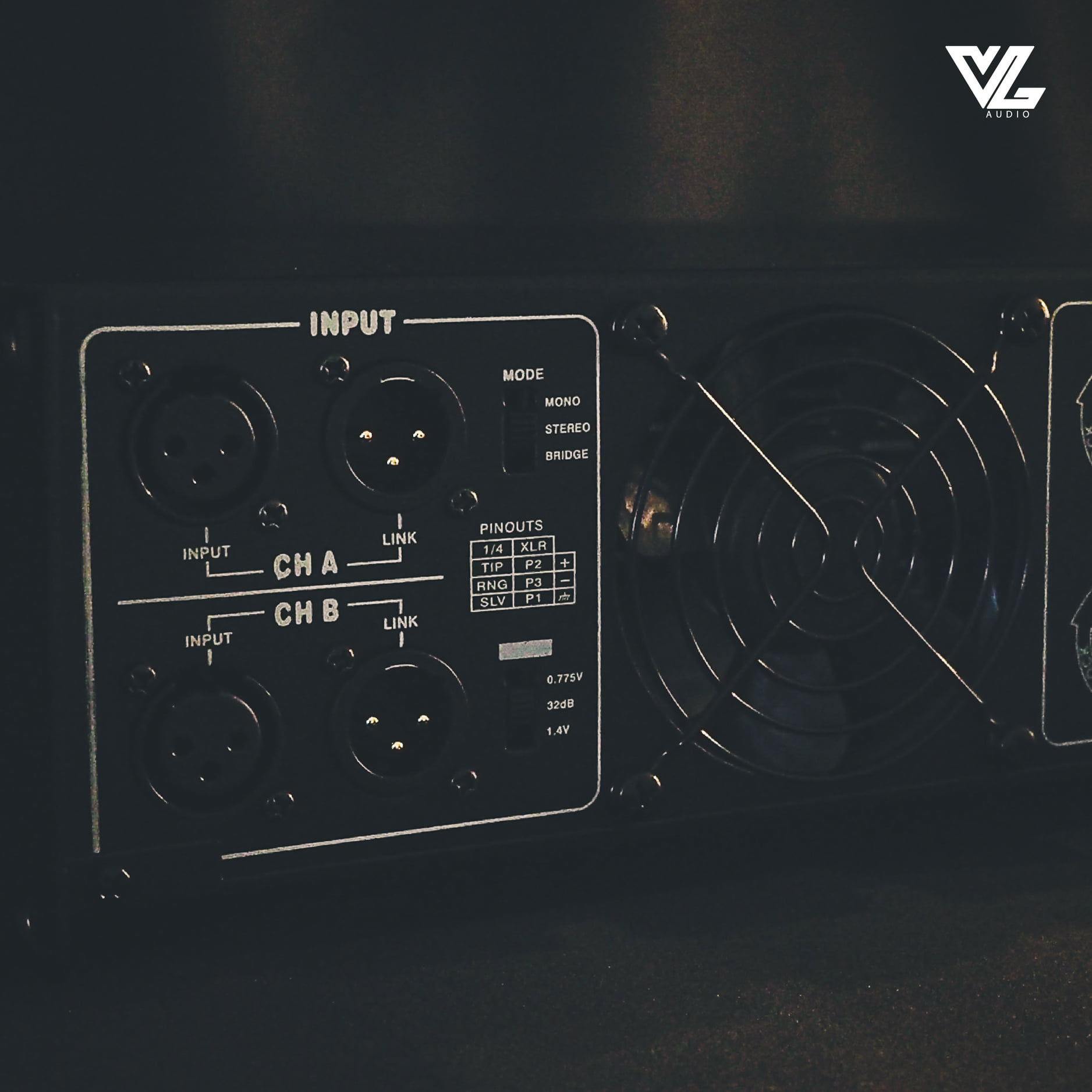

• Input Connectors

  3-Pin XLR

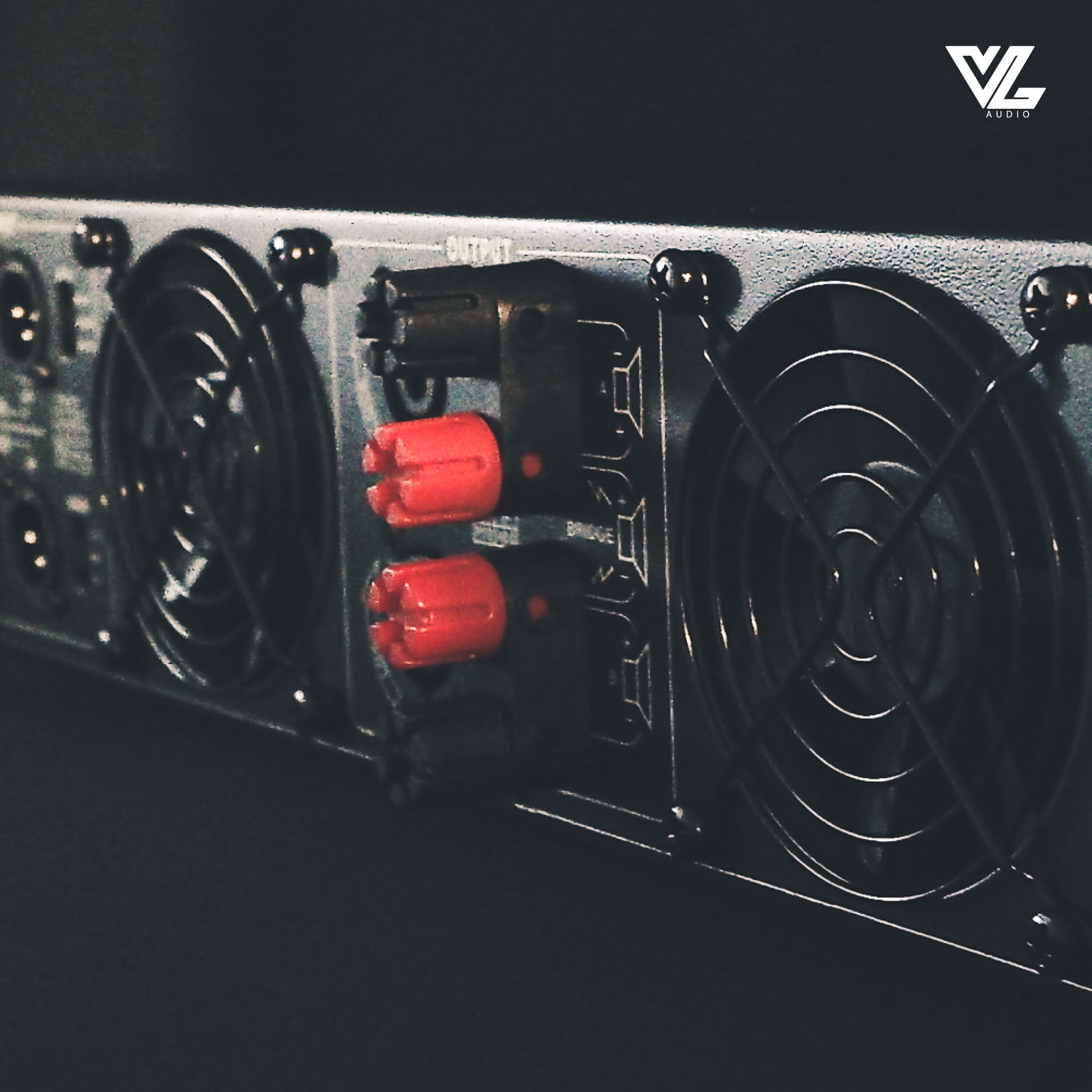

• Output Connectors

  4-Pin SpeakOn / Binding Posts 2-Pole
• Output Bridge Mode

  A+B (CH A is Input Source)
• Mode

  Mono, Stereo, Bridge
• Intelligent Fans

  Depending on Presence of Output Signal
• Cooling

  Dual Fan, Front to Rear Airflow
• -------- POWER --------
• Operating Voltage, 220V

  170-264V
• Mains Connector

  230V IEC: Standard
• -------- SIZE --------
• Height

  88mm(2U)
• Width

  483mm
• Depth

  416mm
• Weight

  10.5kg
