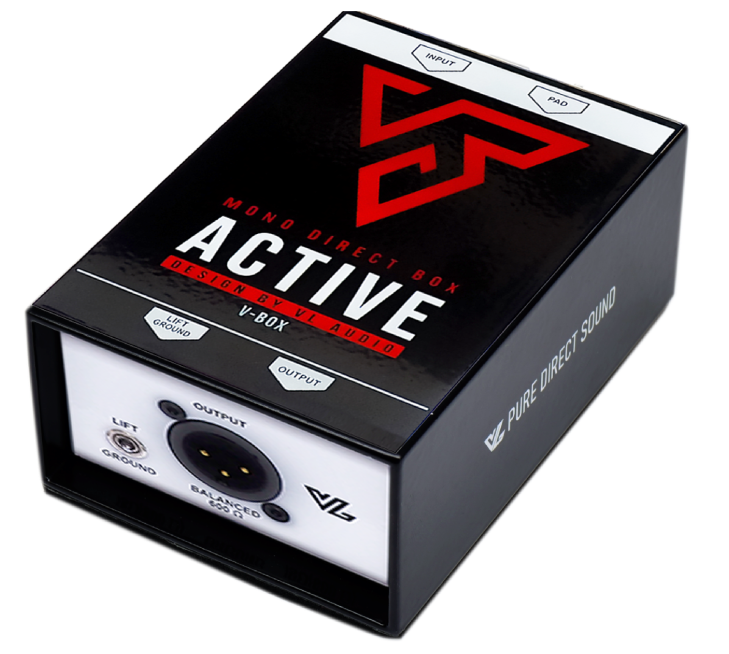

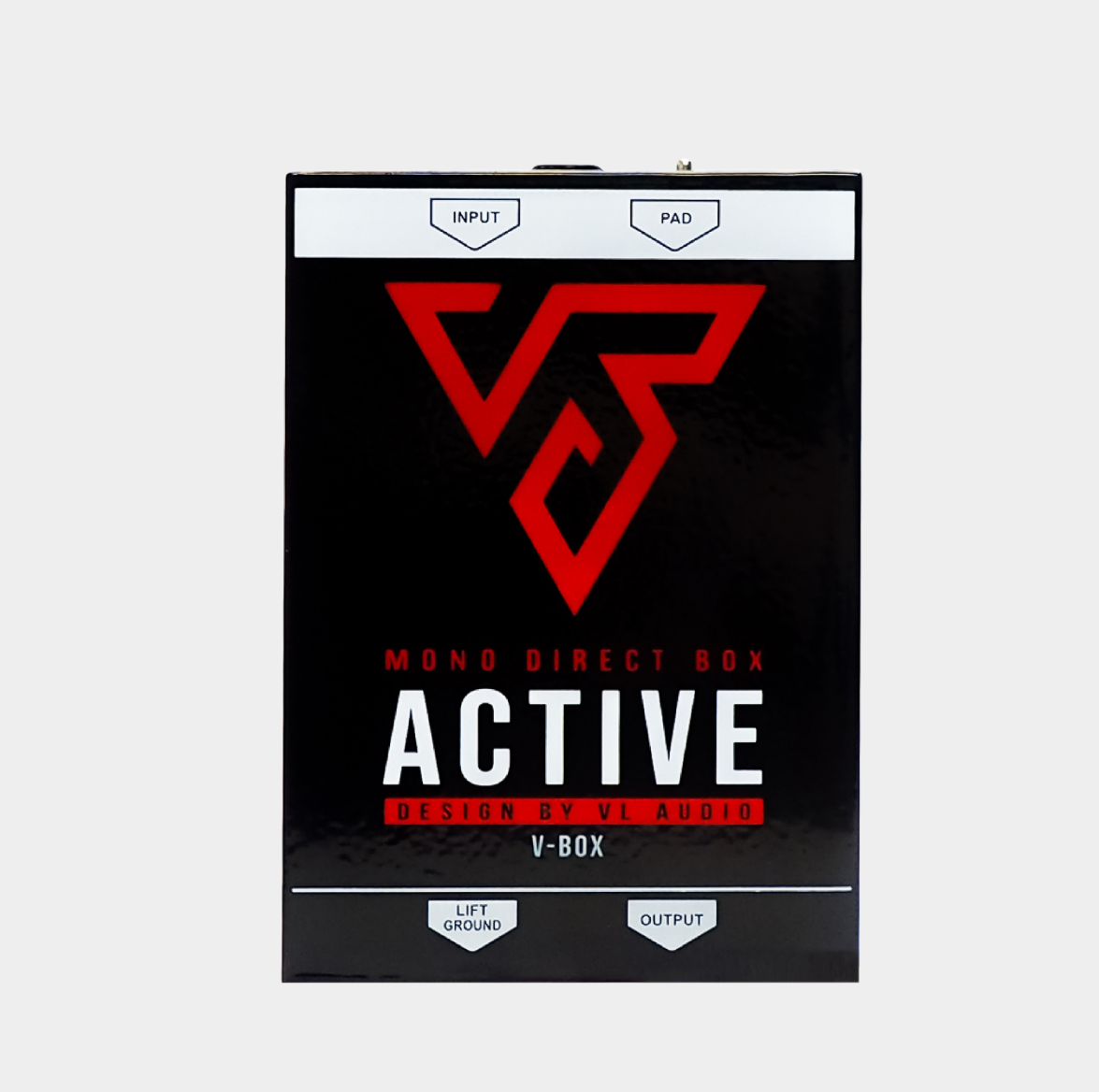

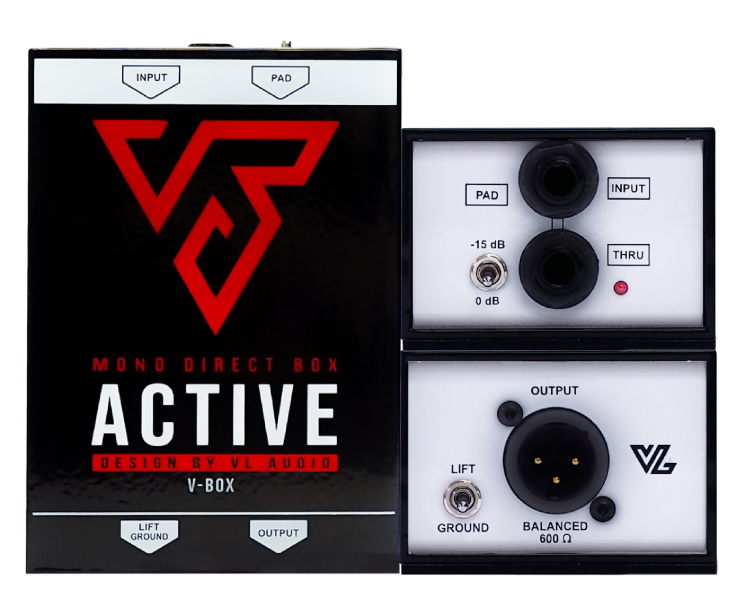

V-BOX

SPECIFICATIONS

• -------- SPECIFICATIONS --------
• Audio circuit type

  Proprietary analog circuit with low-Noise op-amp
• Number of Channels

  Mono
• Frequency response

  20Hz-20kHz
• Dynamic range

  125dB
• Total harmonic distortion

  0.01% @1k, +4dBu
• Phase deviation

  -11° @20Hz, -2.8° @100Hz
• Input impedance

  220kΩ Unbalanced
• Output impedance

  200Ω Balanced
• Maximum input

  +15dBu @20Hz - 20kHz (With Pad)
• -------- FEATURES --------
• Ground lift

  Yes
• Phantom power LED

  Yes

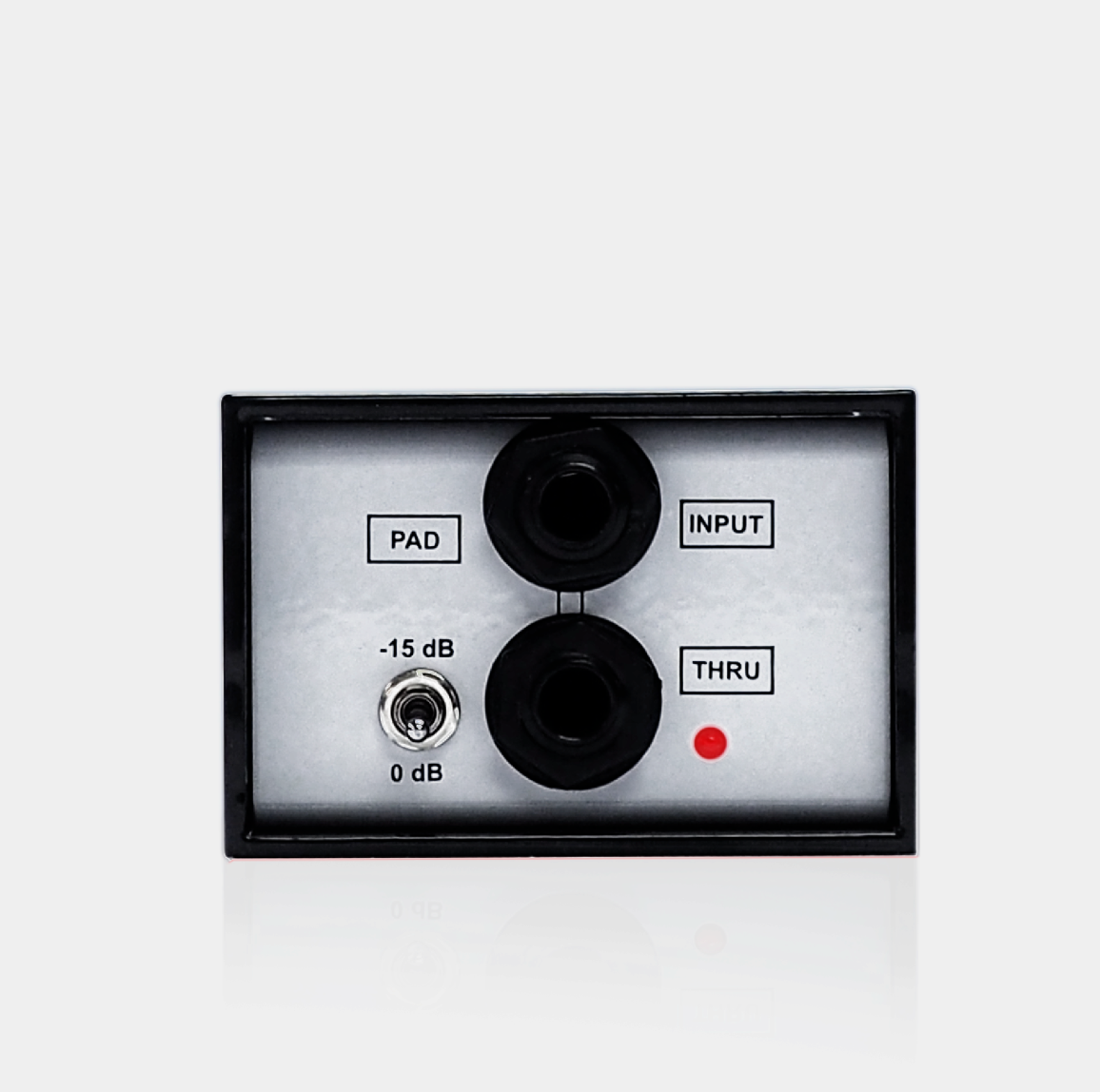

• Input connectors

  2 TS 1/4” (1 Thru)

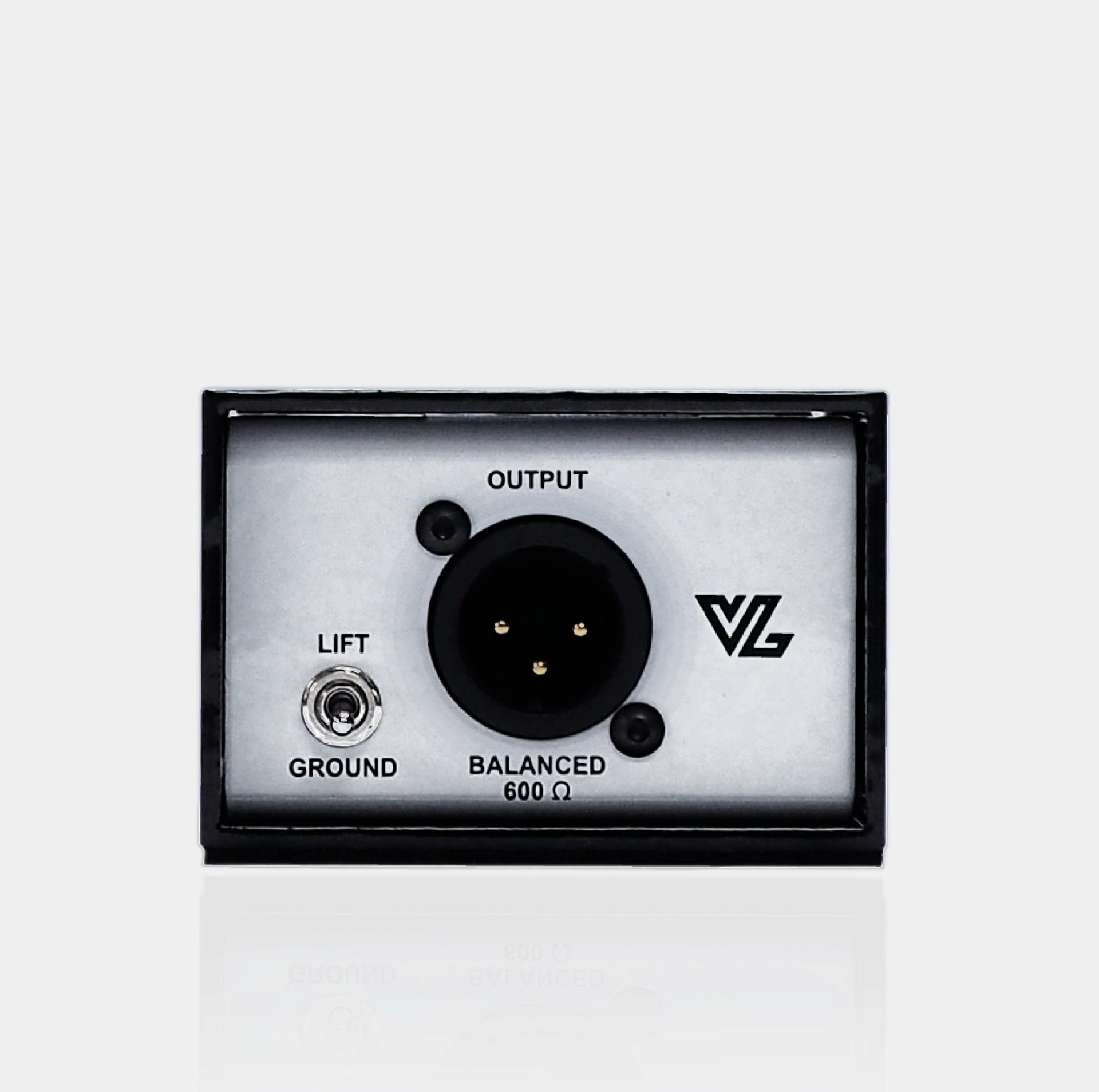

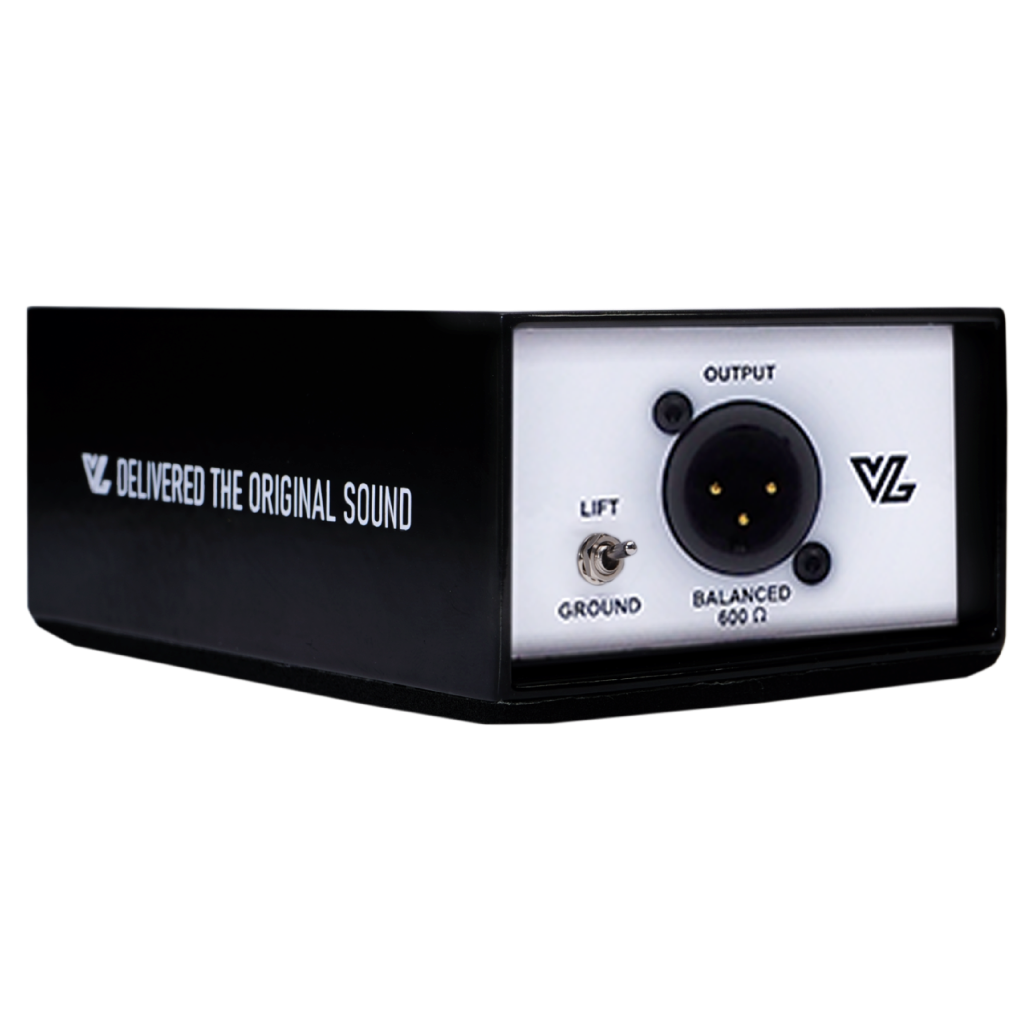

• Output connectors

  2 XLR Male outputs
• -------- GENERAL --------
• Conditions

  For use in dry locations only
• Warranty

  Life time
• -------- SIZE --------
• Height

  48mm
• Width

  69mm
• Depth

  97mm
• Weight

  0.25kg
• -------- SHIPPING INFORMATIONS --------
• Package height

  52mm
• Package width

  92mm
• Package depth

  122mm
• Package weight

  0.33kg
