V-MIC VOICE MATE R2

Dual Channel (694.4 - 702.7 MHz, 748.3 - 757.7 MHz)

Delivers Your Voice with V-MIC : Voice Mate designed by VL Audio delivers high-quality sound and is designed for professionals in the vocal, speech, concert and live performance industries.

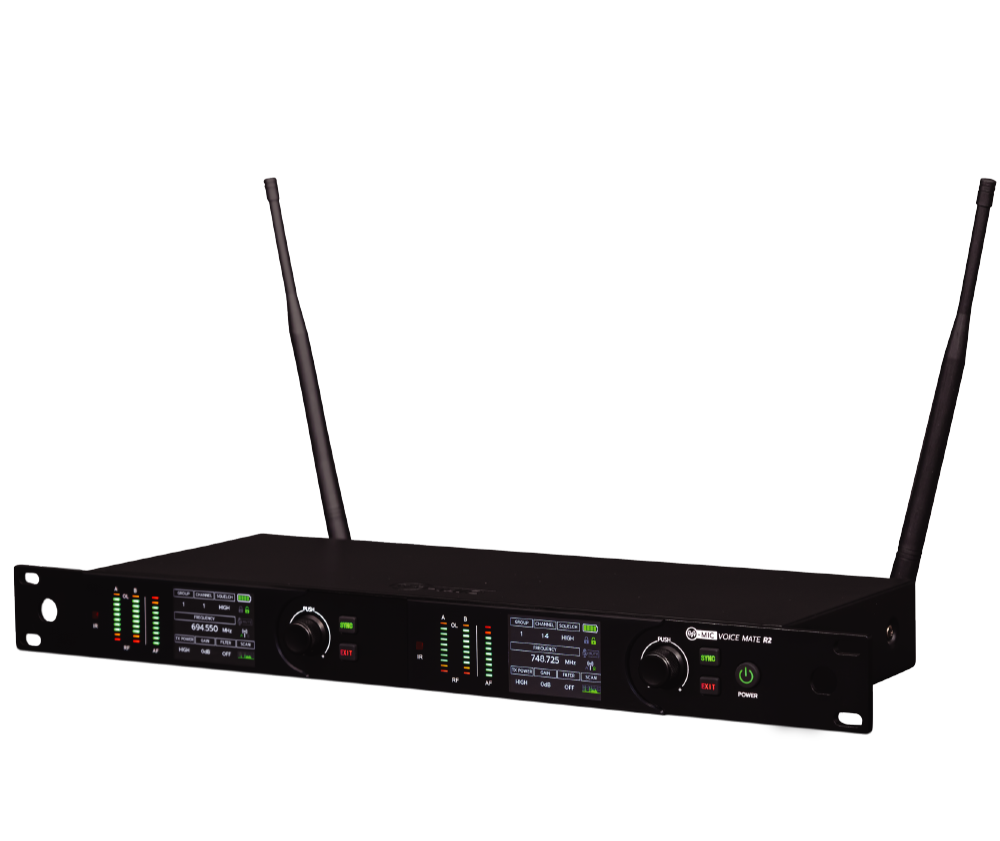

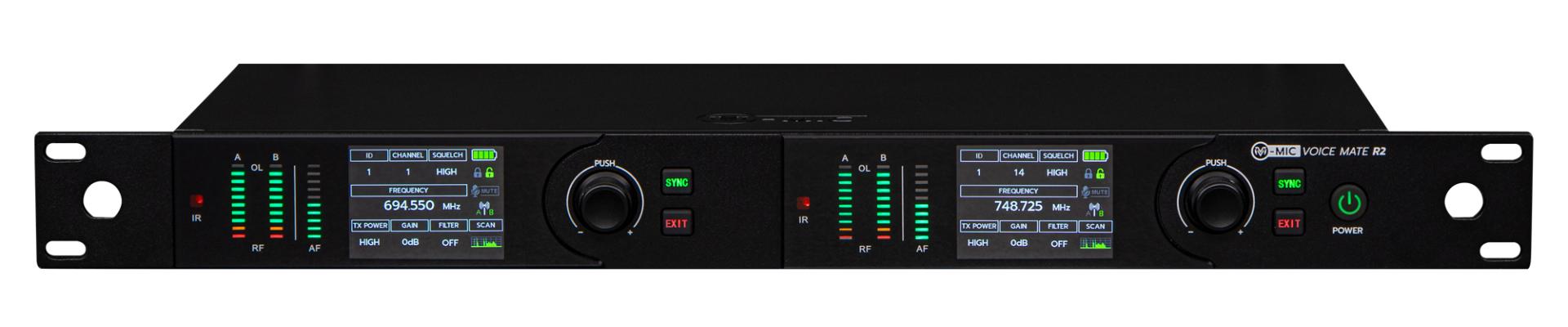

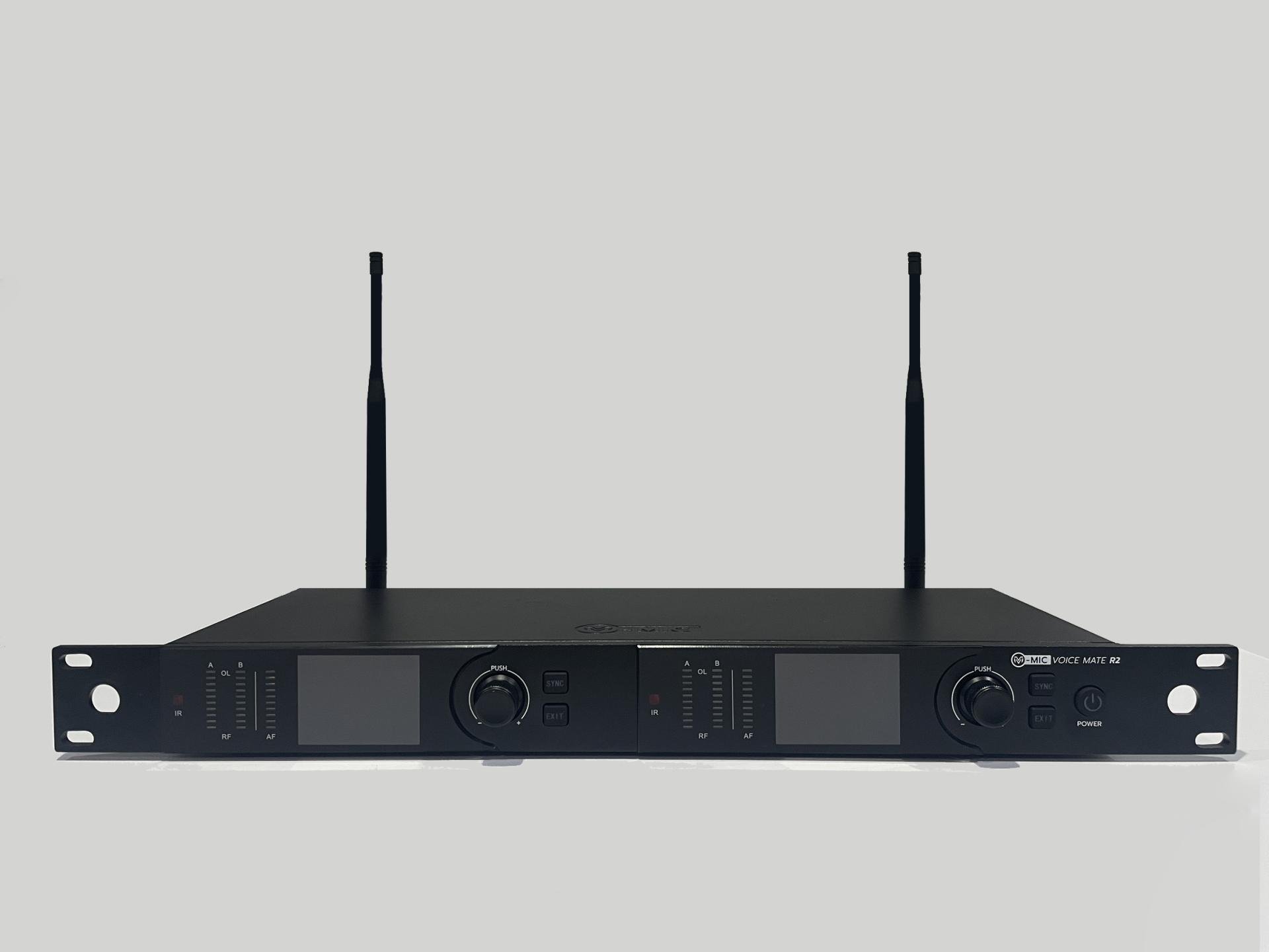

V-MIC VOICE MATE R2

The V-MIC : Voice Mate R2 dual channel digital wireless microphone receiver features an easy-to-use control and interface for setup, so you can tailor. it all your needs, whether you are a singer, musician, performer or speaker, easily syncs with the wireless transmitter and receivers, efficiently manage radio frequency.

FEATURES

• Digital Audio Converter 24-bit
• Frequency response extends smoothly from 20 Hz to 20 kHz.
• With 106 dB dynamic range
• Digital predictive switching diversity
• Easy pairing of transmitters and receivers over scan and IR sync • Easy group scan
• Rugged metal construction

SPECIFICATIONS

-------- SYSTEM --------
RF Carrier Frequency Range

694.4 - 702.7 MHz and 748.3 - 757.7 MHz
Run up to

42 Channel (High Density), 26 Channel (Normal)
Range F1 : 694.4 - 702.7 MHz (21 CH High Density), (13 CH Normal)
Range F2 : 748.3 - 757.7 MHz (21 CH High Density), (13 CH Normal)
Modulation Mode

Differential Quadrature Phase Shift Keying (DQPSK)
Working Range

80 m
RF Tuning Step Size

25 kHz
-------- ANTENNA --------
Antenna

2 x Antenna True Diversity
RF Input Connector Type

BNC
BNC Impedance

50 Ω
-------- AUDIO --------
Gain Adjustment Range

-26 to 0 dB in 1 dB steps
Dynamic Range

>106 dB @1% THD
Audio Frequency Response

20 Hz - 20 kHz
Digital Audio Converter

24 Bit, 48 kHz
Latency

<2.5 ms
Output Conector Type

2 x XLR : Balanced
2 x 1/4" (6.35 mm) : Balanced
2 x 1/4" (6.35 mm) : Unbalanced
Maximum Output

18 dBu
-------- NETWORK --------
Network Conector

2 x RJ45
-------- POWER --------
Power Requirements

DC 15V / 1500 mA
-------- SIZE --------
Height

44 mm
Width

483 mm
Depth

160 mm
Weight

1.76 kg

ACCSSORIES

V-MIC VOICE MATE R1 F1

V-MIC VOICE MATE R1 F2

V-MIC VOICE MATE R2

V-MIC VOICE MATE R1-A

DOWNLOADS

DATA SHEET

V-MIC R2

Published on 22/09/2025
