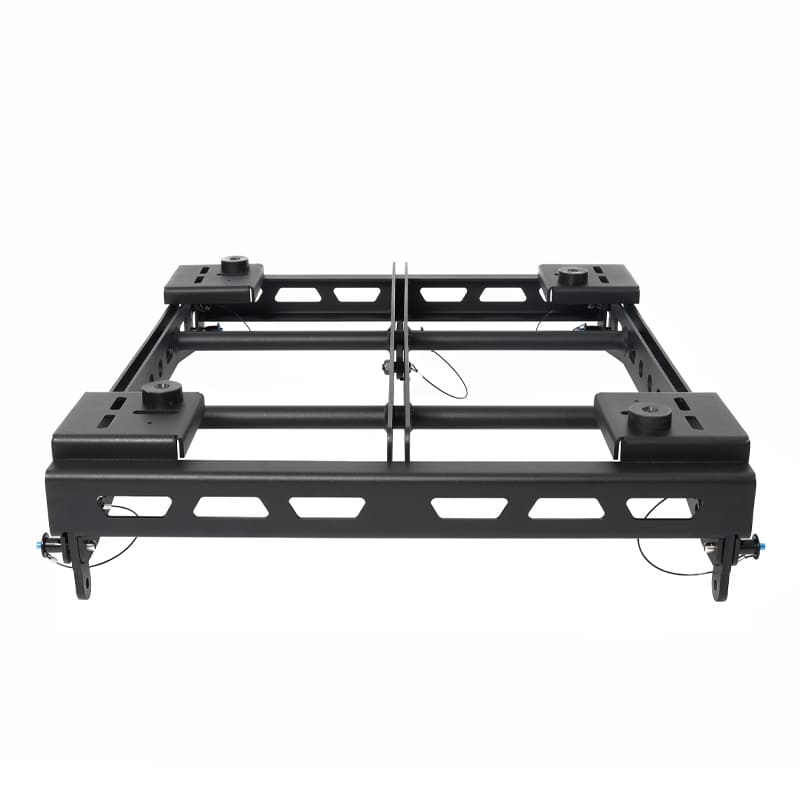

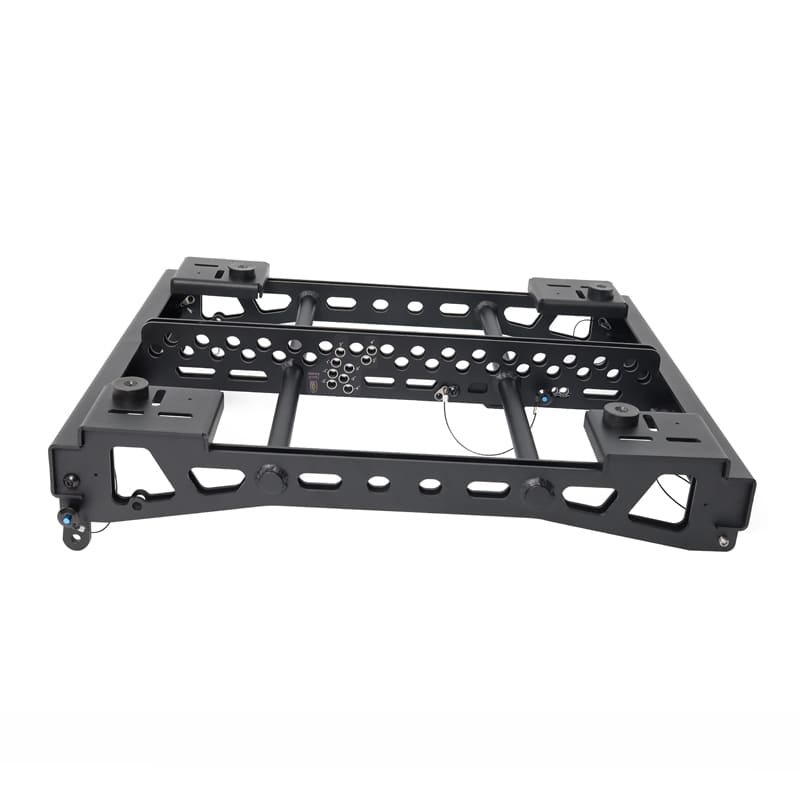

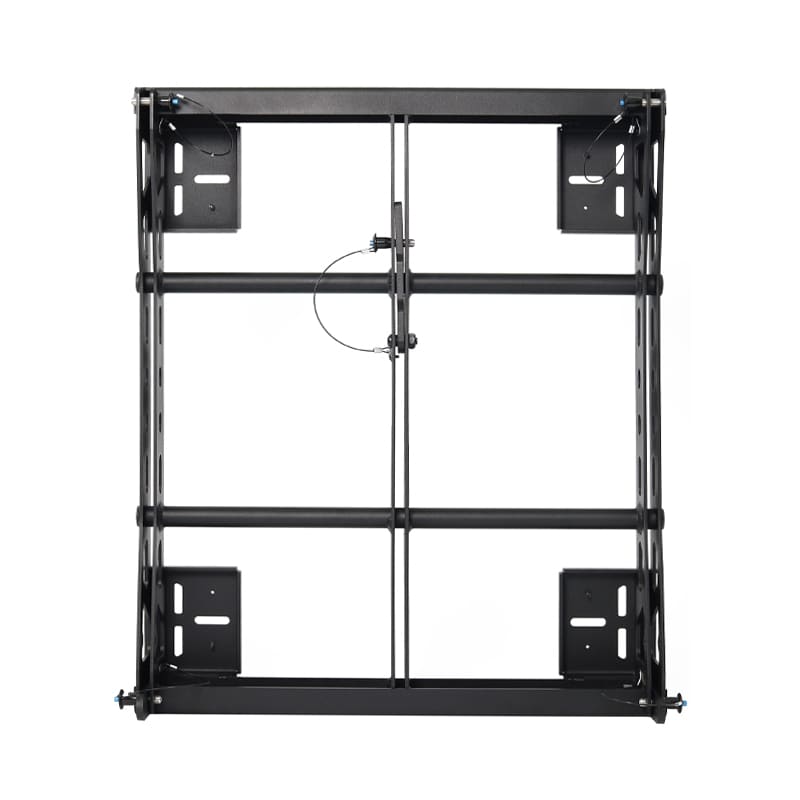

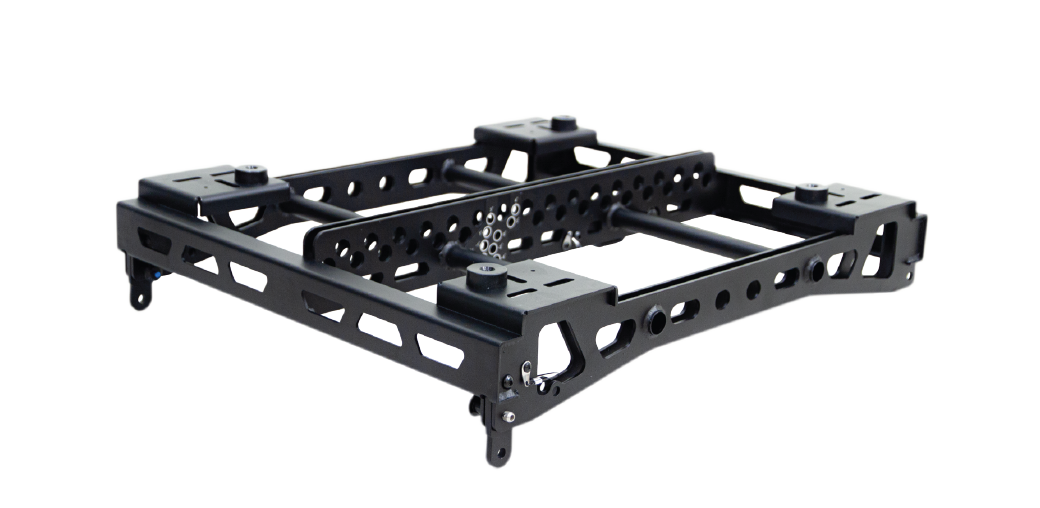

FLYBAR-12L

Supports for VD-12L

Flybar-12 has been certiﬁed by ISO/IEC 17025-2005 laboratory.

Supports for VD-12L

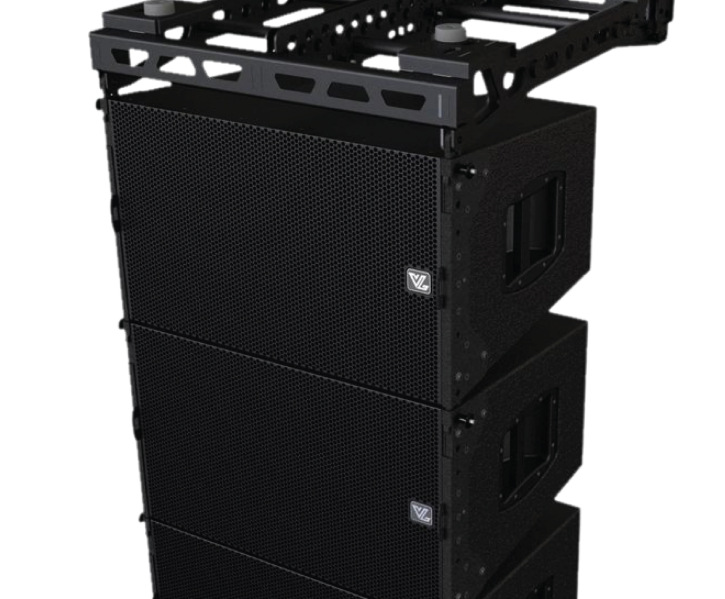

Flybar-12L used for ﬂown or ground stack with VD-12L, Supports up to 16 Cabinets and up to 4 Cabinets for Ground Stack.

FEATURES

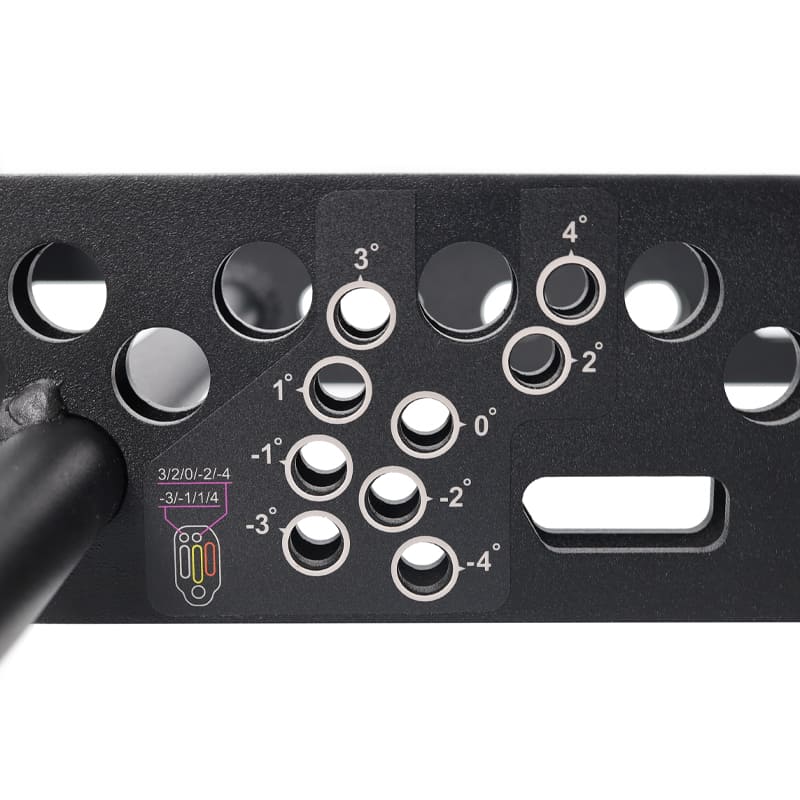

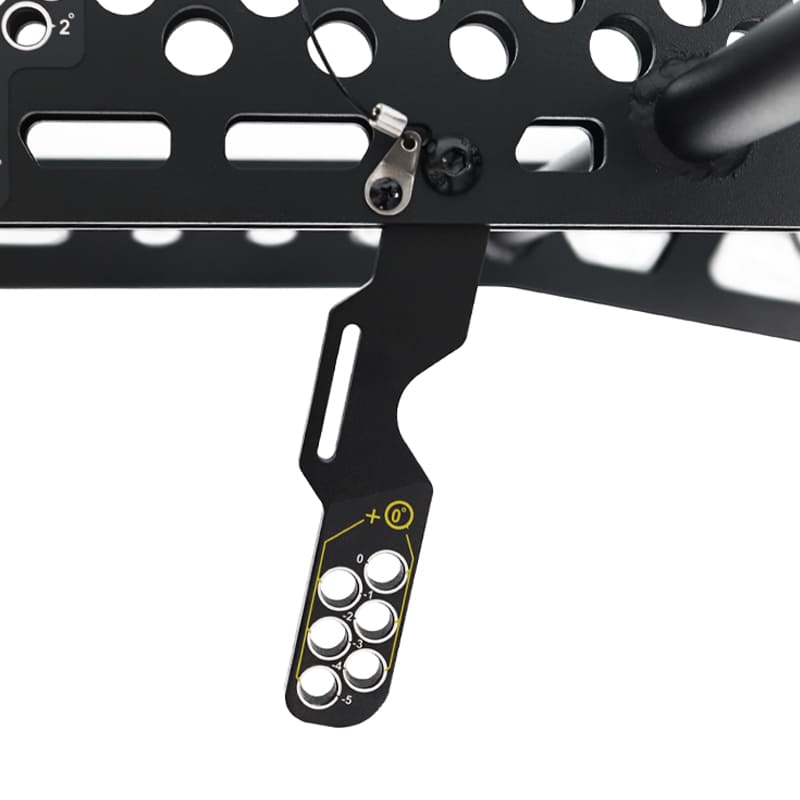

31 Pick points available for single point suspension.
Strong steel construction.
Rubber feet installed to form a secure base for ground stacking.

SPECIFICATIONS

-------- GENERAL SPECIFICATION --------
Flown Maximum Number of Speaker

18 Unit
Ground Stack Maximum Number of Speaker

4 Unit
Flybar Maximum Weight Support

11,527kg/f (ISO/IEC 17025-2005)

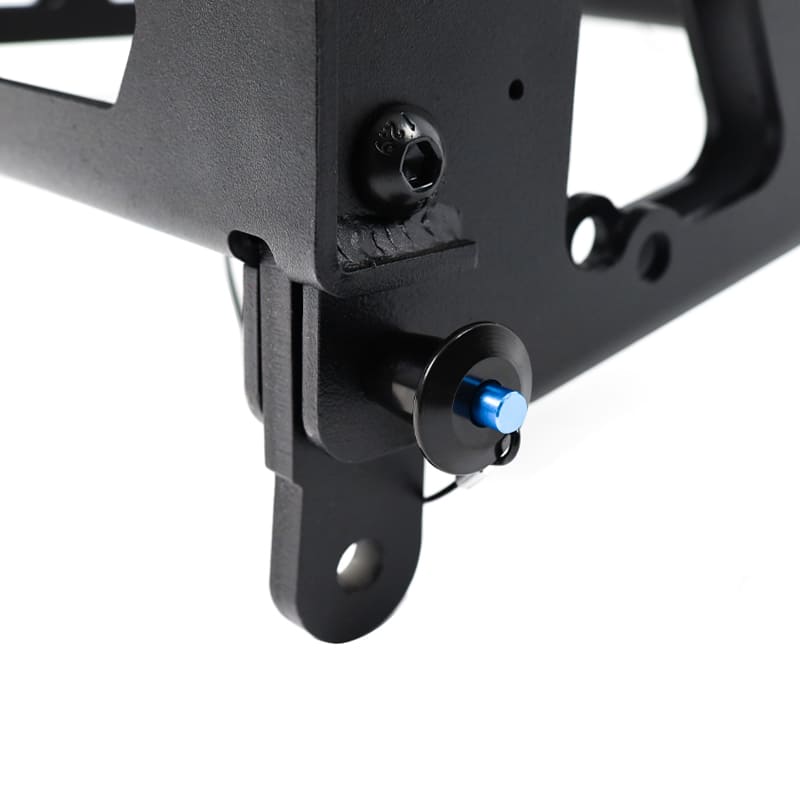

Pin lock Maximum Weight Support

4,604kg/f (ISO/IEC 17025-2005)
-------- PHYSICAL SPECIFICATION --------
Material

Steel
Color

Black
-------- SIZE --------
HEIGHT

163mm / 6.41inhes
WIDTH

627mm / 24.68inhes
DEPTH

742mm / 29.21inhes
WEIGHT

20.94kg
