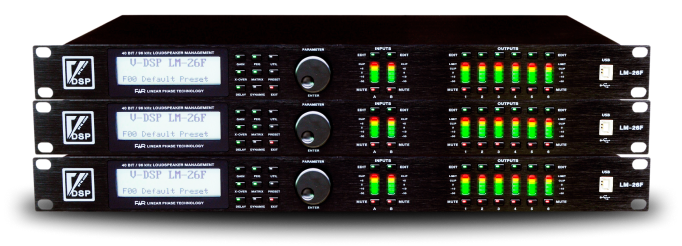

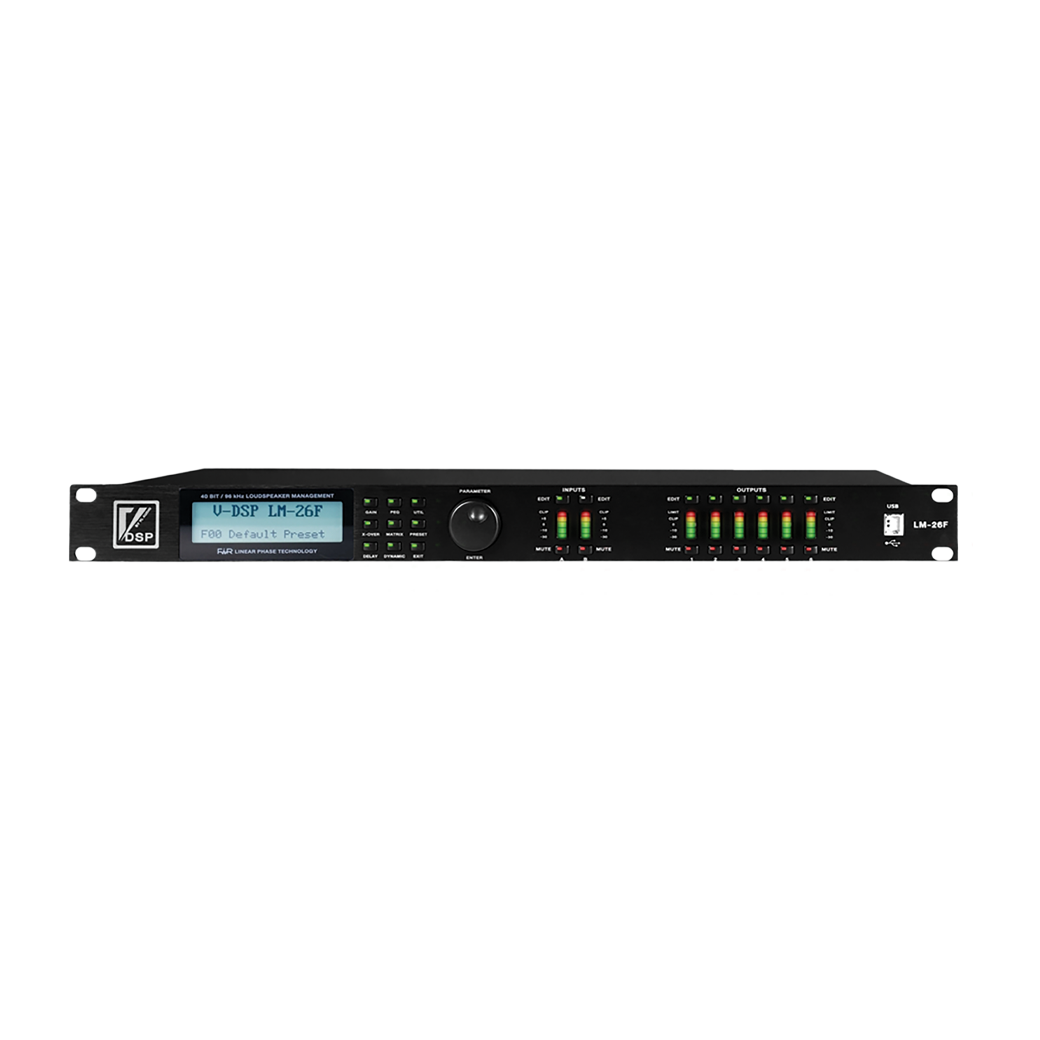

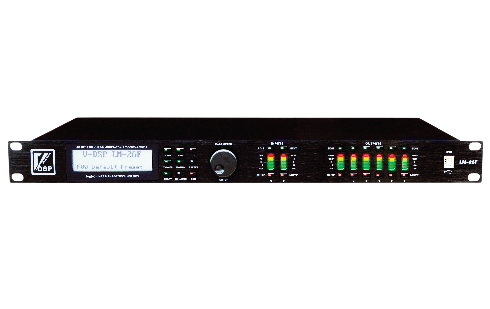

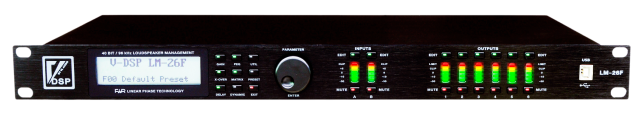

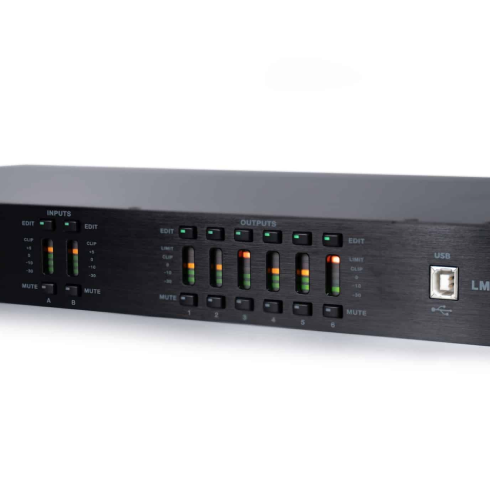

V-DSP

SPECIFICATIONS

• -------- SPECIFICATIONS (Firmware V.1.2) --------
• Frequency response

  20Hz - 20kHz
• Signal to noise ratio(S/N)

  >115dBu
• Total harmonic Distortion(THD)

  <0.005@1kHz(0dBu)
• -------- INPUTPROCESSING --------
• Input Connector

  2 XLR
• Maximum input

  +18dB
• Impedance

  1MΩ(Stereo)/500k(Mono)
• Gain

  -60dB to +12dB
• PEQ

  14 Band
• PEQ Type

  Peak, L-Shelf, H-Shelf, Low-Cut High-Cut, Allpass1, Allpass2
• Delay

  0 to 680ms
• FIR Maximum per input

  2,048Tap
• -------- OUTPUTPROCESSING --------
• Output Connector

  6 XLR
• Maximum Output

  +18dB
• Impedance

  <500kΩ
• Crossover Mode

  IIR, FIR, IIR+FIR
• IIR Type

  Butterworth, Bessel, Linkwitz-Riley
• FIR Maximum Per Output

  1,024Tap
• Gain

  -60dB to +12dB
• Compressor

  RMS Compressor
• Limiter

  Peak Limiter
• PEQ

  6 Band
• PEQ Type

  Peak, L-Shelf, H-Shelf, Low-Cut, High-cut, Allpass1, Allpass2
• Delay

  0 to 680ms
• -------- SIZE --------
• Height

  44mm(1U)
• Width

  483mm
• Depth

  243mm
• Weight

  2.7kg
